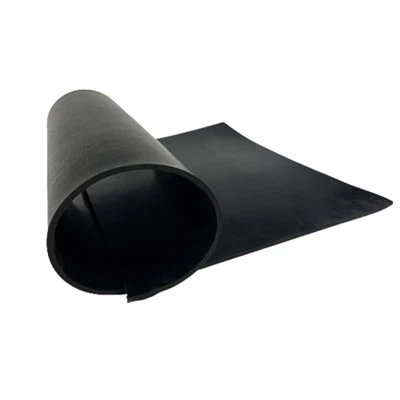

NR38 Wear Resistant Natural Rubber Sheet
Advanced Wear Protection Solutions for Mining, Aggregate & Material Handling Industries
Available Grades: NR38 PRO (Dry Abrasion) & NR38 EXTREME (Full-Scene Wear Protection)
In mining, quarrying, aggregate processing, and bulk material handling operations, wear is one of the largest contributors to maintenance costs and unplanned downtime.
Standard rubber sheets may perform adequately under light-duty conditions, but severe abrasion, impact loading, slurry flow, and continuous material transfer demand a more specialized solution.
The AOCHEN NR38 Series has been developed specifically for wear-critical applications where service life, operational reliability, and maintenance reduction are essential.
The series includes two engineered compounds designed to address different wear environments:
By selecting the right compound for your operating environment, equipment operators can significantly reduce liner replacement frequency, improve equipment availability, and lower overall maintenance costs.
Similar to the quality of Liquid-Phase Latex Rubber, the price is more affordable.
Request Quote Request Technical Consultation Get Sample
product Technical Specifications
| Product Name | NR38 Wear Resistant Natural Rubber Sheet | ||
| Product Code | ACS01005-38 | ||
| Length | 10m-20m | ||
| Width | 1m~1.3m | ||
| Thickness | 2mm~12mm | ||
| Customization | Size can be customized to your requirements. | ||
| Hardness | 38 +/-5 Shore A | Tear Resistance | ≥45 N/mm |
| Density | 0.96 +/-0.05 g/cm³ | Resilience | 70% |
| Tensile Strength | ≥24MPa | Abrasion Resistance at 5N | ≤60 mm³ |
| Insertion | Cotton, nylon, EP etc | Certification | ISO9001, ROHS and REACH. |
| NR38 PRO (For Dry Abrasion) | |||
NR38 PRO is designed for operations where dry abrasion is the primary wear mechanism. The compound provides excellent wear resistance, impact recovery, and cost efficiency, making it ideal for high-volume material handling environments. | |||
| Product Code | ACS01005-38 PRO | rubber compound | Natural Rubber |
| Hardness | 38 +/-5 Shore A | elongation at break | ≥800% |
| Density | 1.0 +/-0.05 g/cm³ | Abrasion Resistance at 5N | ≤80 mm³ |
| Tensile Strength | ≥24MPa | operating temp | -40℃ to 90℃ |
| Tear Resistance | ≥40 N/mm | ||
| NR38 EXTREME (For Full Scenes) | |||
| NR38 EXTREME is developed for operations facing multiple wear mechanisms simultaneously, including abrasion, impact, slurry flow, moisture, and fluctuating operating conditions. | |||
| Product Code | ACS01005-38 EXTREME | Natural Rubber content | ≥95% |
| Hardness | 38 +/-5 Shore A | elongation at break | ≥800% |
| Density | 0.96 +/-0.05 g/cm³ | Abrasion Resistance at 5N | ≤60 mm³ |
| Tensile Strength | ≥24MPa | operating temp | -40℃ to 90℃ |
| Tear Resistance | ≥45 N/mm | Resilience | ≥78% |
Features & Benefits
Superior Abrasion Resistance
Engineered natural rubber compounds provide exceptional resistance against abrasive materials such as sand, gravel, ore, coal, and aggregates.
Excellent Impact Absorption
High resilience helps absorb repeated impact loads while protecting equipment surfaces from premature wear.
Extended Service Life
Designed to outperform conventional rubber materials in demanding industrial environments.
Reduced Maintenance Costs
Longer liner life means fewer shutdowns, reduced labor requirements, and lower replacement costs.
Optimized for Real Operating Conditions
Developed for actual mining and material handling applications rather than laboratory-only performance testing.
Custom Manufacturing Available
Available in sheets, rolls, fabricated liners, custom-cut components, and OEM wear protection systems.
Applications
Mining & Mineral Processing
- Chute Linings
- Wear Liners
- Hydrocyclone Components
- Slurry Handling Systems
Aggregate & Quarry Operations
- Crusher Feed Areas
- Transfer Points
- Screening Equipment
- Conveyor Systems
Bulk Material Handling
- Conveyor Skirting
- Hopper Protection
- Impact Zones
- Loading Stations
Industrial Processing Plants
- Material Conveying Systems
- Abrasion Protection Components
- Equipment Wear Protection
Frequently Asked Questions
What is the difference between NR38 PRO and NR38 EXTREME?
NR38 PRO is optimized for dry abrasion applications, while NR38 EXTREME is designed for both wet and dry environments where maximum wear resistance is required.
Which rubber grade is better for slurry applications?
NR38 EXTREME is recommended for slurry transport systems, hydrocyclones, and tailings operations.
Which industries typically use NR38 wear rubber?
Mining, quarrying, aggregate processing, cement production, and bulk material handling industries.
Can AOCHEN customize thickness and dimensions?
Yes. Custom sizes and specifications are available.
Do you provide samples?
Yes. Samples can be supplied for testing and evaluation.
What is your MOQ?
Please contact our sales team for specific project requirements.
| Product Name | NR Rubber Sheet 38 | ||
| Product Code | ACS01005-38 | ||
| Product Size | 2mm~12mm x 1m~1.3m x 10m~20m | ||
| Hardness | 38 +/-5 Shore A | Tear Resistance | ≥45 N/mm |
| Density | 0.96 +/-0.05 g/cm³ | Resilience | 70% |
| Tensile Strength | ≥24MPa | Abrasion Resistance at 5N | ≤60 mm³ |
 |  | ||
| NR38 PRO (For Dry Abrasion) | NR38 EXTREME (For Full Scenes) | ||
| Product Code | ACS01005-38 PRO | Product Code | ACS01005-38 EXTREME |
| rubber compound | Natural Rubber | Natural Rubber content | ≥95% |
| Hardness | 38 +/-5 Shore A | Hardness | 38 +/-5 Shore A |
| Density | 1.0 +/-0.05 g/cm³ | Density | 0.96 +/-0.05 g/cm³ |
| Tensile Strength | ≥24MPa | Tensile Strength | ≥24MPa |
| Tear Resistance | ≥40 N/mm | Tear Resistance | ≥45 N/mm |
| elongation at break | ≥800% | elongation at break | ≥800% |
| Abrasion Resistance at 5N | ≤80 mm³ | Abrasion Resistance at 5N | ≤60 mm³ |
| operating temp | -40℃ to 90℃ | operating temp | -40℃ to 90℃ |
| Resilience | ≥78% | ||
